محطة طاقة الشرفة الصغيرة موتو مايكرو

محطة طاقة الشرفة الصغيرة موتو مايكرو





محطة Moto Balcony عبارة عن نظام تخزين طاقة صغير الحجم للاستخدام المنزلي يتكون من 1-3 وحدات ثانوية ووحدة رئيسية واحدة. بفضل تصميمه القابل للتكديس وخفيف الوزن، يمكن تكييفه بمرونة مع سيناريوهات مختلفة. يمكن أن يتراوح النظام من 2.15 كيلو واط في الساعة إلى 6.45 كيلو واط في الساعة كحد أقصى، ويتميز بنظام تدفئة مستقل، مما يلبي احتياجات تخزين الطاقة في شرفتك بشكل مثالي.

  • نوع الخلية :

    LiFePO4 (LFP)
  • الفولطية المقدرة (V) :

    42.6
  • القدرة المقدرة (آه) :

    54
  • الطاقة المقدرة (كيلوواط ساعة) :

    2.15
  • البعد (مم) :

    479*289*261
  • اتصال :

    1P16S
  • درجة حرارة العمل (°C) :

    -20 ~ 40
  • معدل التفريغ الذاتي :

    ≤5% (25 °C, 50% SoC) Per Month
  • تصنيف IP :

    IP65 (Foundation needed)
  • السيناريو :

    Indoor
  • الوزن الصافي (كجم) :

    32.5
  • انتقال :

    CAN, RS485, Dry Contact, WiFi
  • شهادة :

    IEC62619, IEC62040, IEC61000, UN38.3
  • تقويم الحياة :

    15 Years (Working Condition 0.5 C @ 25 deg C, 80% DoD, 1 cycle per day)
  • دورة حياة مصممة :

    3000 Cycles (0.5C/80%DOD/80%SOH/1 cycle per day)



IEC61000/IEC62040/IEC62619/CE/UN38.3/TUV







صغير الحجم وخفيف الوزن، ويشغل الحد الأدنى من المساحة الأرضية.

مريحة وسهلة التركيب.

متعدد الاستخدامات للاستخدام الداخلي والخارجي، مع دعم الحد الأقصى لـ IP65.

قدرات بسيطة لتوسيع سعة البطارية.

التسخين الذاتي لدرجة الحرارة المحيطة المنخفضة (اختياري)



















اترك رسالة
إذا كان لديك أي اهتمام بنا وترغب في الحصول على مزيد من التفاصيل، يرجى ترك رسالة هنا، وسوف نقوم بالرد عليك في أقرب وقت ممكن!

منتجات ذات صله

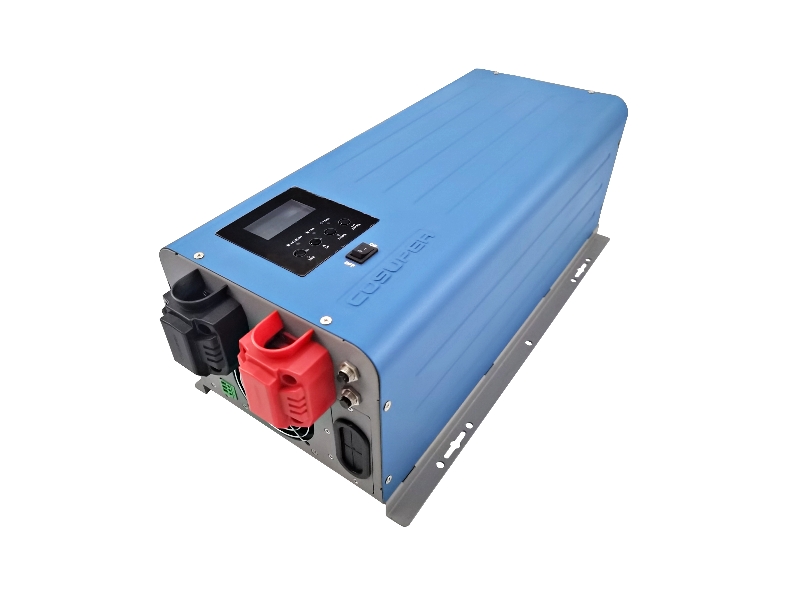

2000W~6000W Pure Sine Wave Inverter Charger
