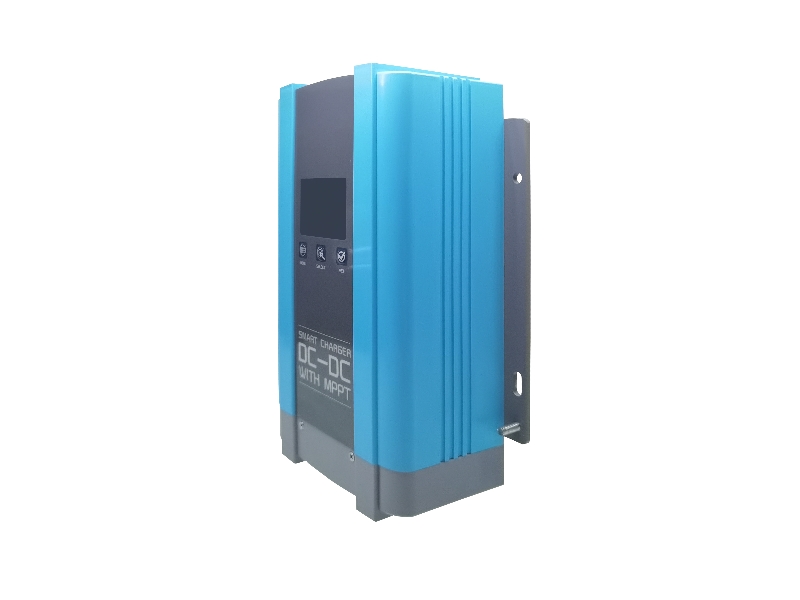

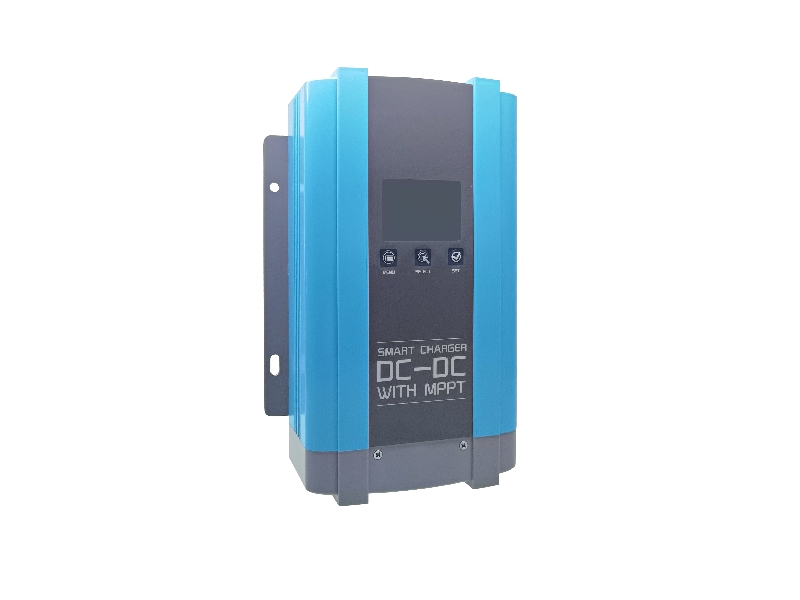

12V 50A DCDC+MPPT Charger

Meet the C&D Emerging Energy’s reliable mobile power solution. It is compatible with both traditional and smart generators, safeguarding the batteries of your vehicle while reaching up to 95% charging efficiency. With advanced charging logic, the charger improves performance for better energy management. From RVs to off-grid applications, this charger delivers the smart, stable energy you need — wherever you go.

Not used "IGNTION” --Do not connect the ACC
CH3: Start Battery Original vehicle battery input channel	Charging logic	>12.5V charging starts after 5s ≤12.3V±0.1V stop charging	>25V charging staris aiter 5s ≤24.6V±0.2V stop charging
	Voltage range	12.5-16Vdc	25-32Vdc
	Voltage system identification	<17Vdc	>17Vdc
	Normal starting voltage	>13.2Vdc	>26.4Vdc
	Overvoltage proteciion point	>16.5V	>32.5V
	Overvoltage recovery point	<16V	<32V
	Undervoltage protection point	<12.3Vdc	<24.6Vdc
	Undervoltage recovery point	>12.5Vdc	>25Vdc
CH2: Solar Aray PV input channel	Voltage range	14.5-45Vdc
	Undervoltage protection point	<14.1Vdc
	Undervoltage recovery point	>14.5Adc
	Overvoltage protection point	>46V
	Overvoltage recovery point	<45V
	MAX power	<23V input.500W(MAX600W); ≥37.5-45V input,750W(MAX 800W)
CH1: House Battery House Battery Channel	Battery type	AGM/GEL/FLOODED/LITHIUM
	Output voltage	13.8-15.5Vdc, Typical value: 12v, Min: 8v
	Overvoltage protection	16Vdc
	Overvoltage recovery	15.5Vdc
	Output current	5/10/15/20/25130135/40/45/50A
	Output power	775W
	Leakage current	<50mA
	Efficiency	95%
BTS	Temperature detection	Operating temperature description No lithium battery, set to nor and disconnect the sensor
Remote	Long-range	CAN
Use "IGNITION"--connect the ACC
CH3: Start Battery Original vehicle battery input channel	Parameter	12V	24V
	Normal starting voltage	>12V	>24V
	Charging logic	>12.5V charging starts after 5s ≤11.8V±0.1V stop charging	>24V charging starts after 5s ≤23.6V±0.2V stop charging
