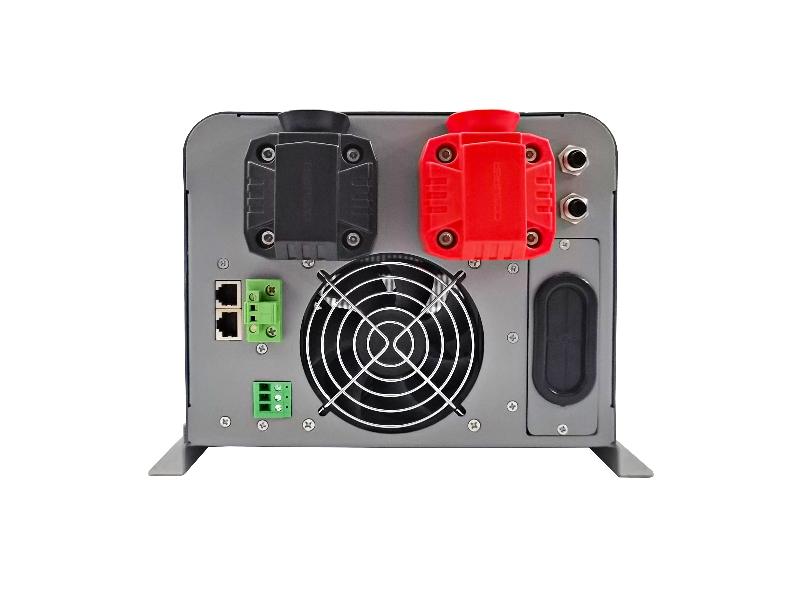

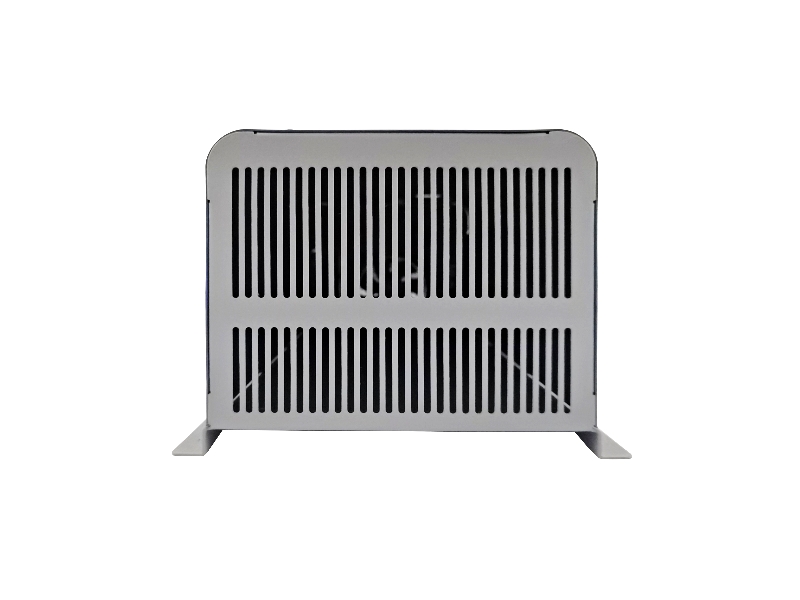

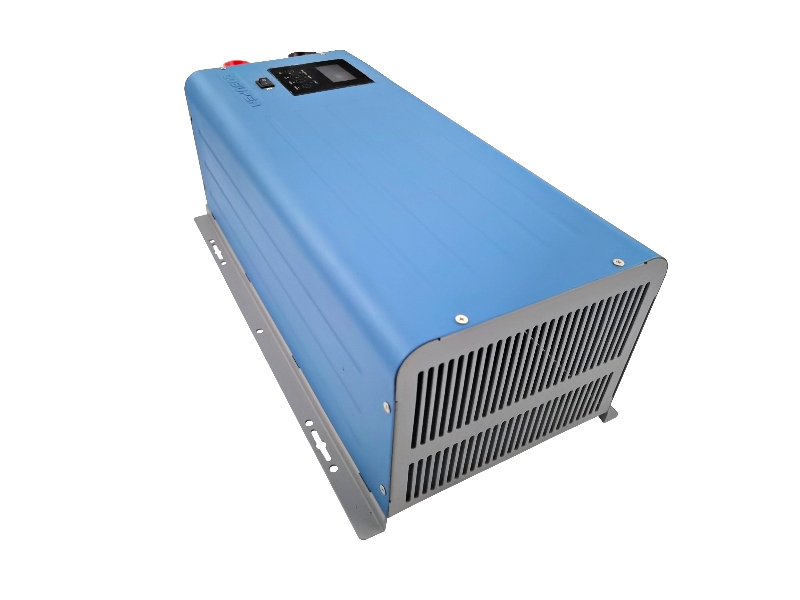

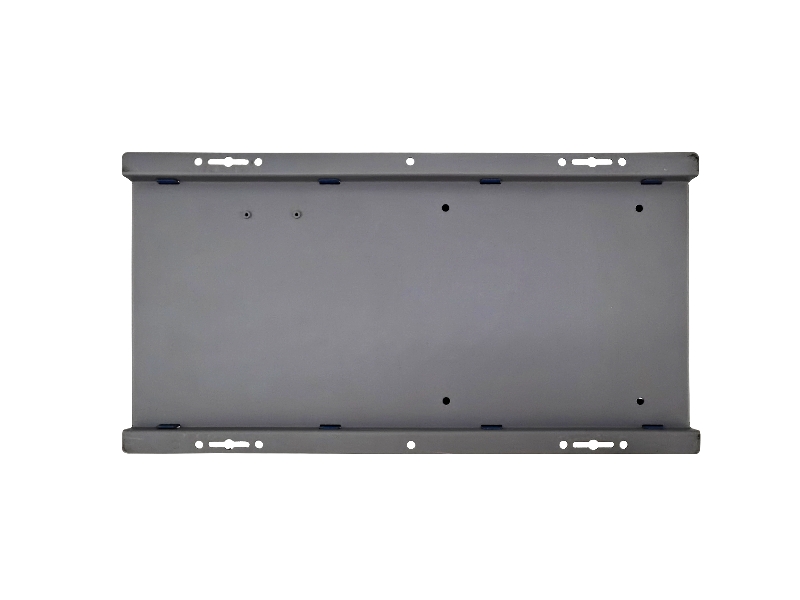

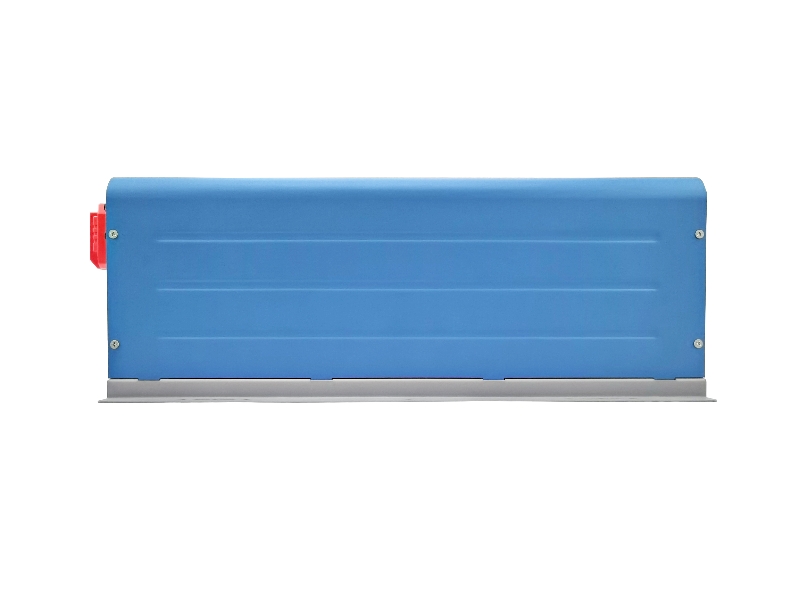

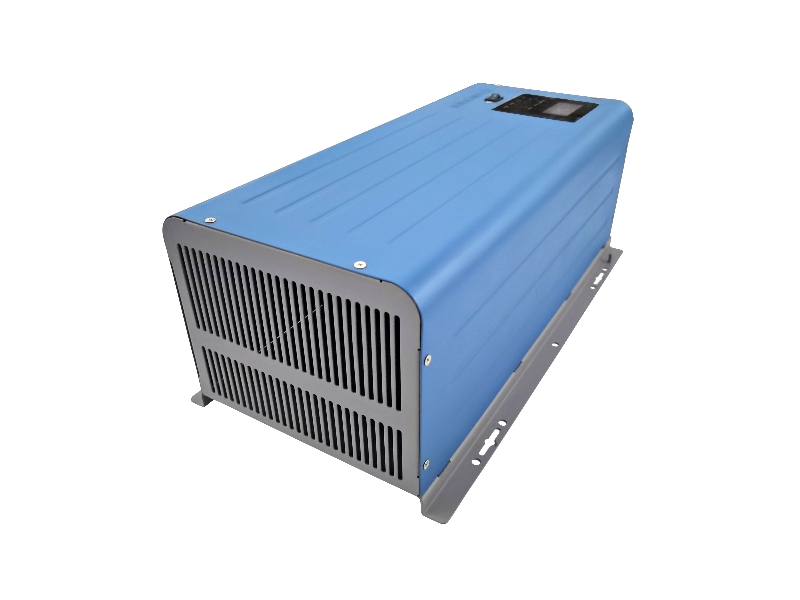

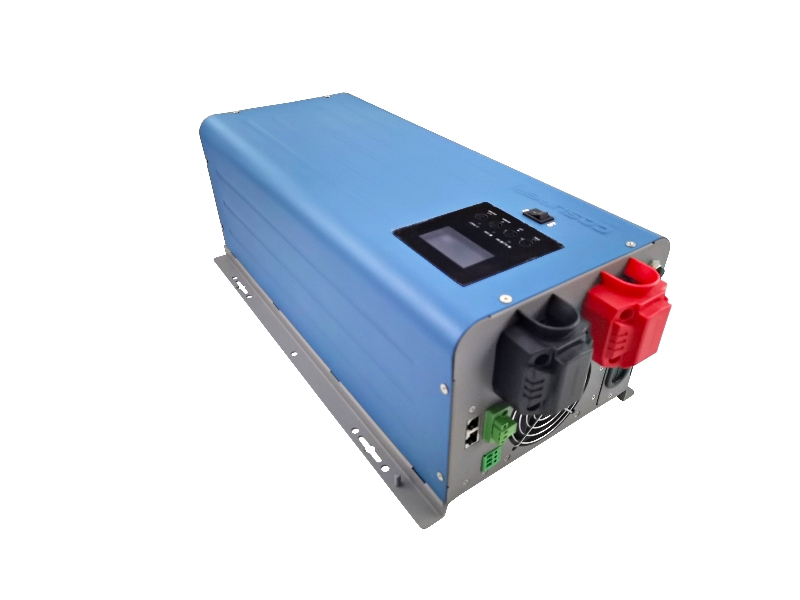

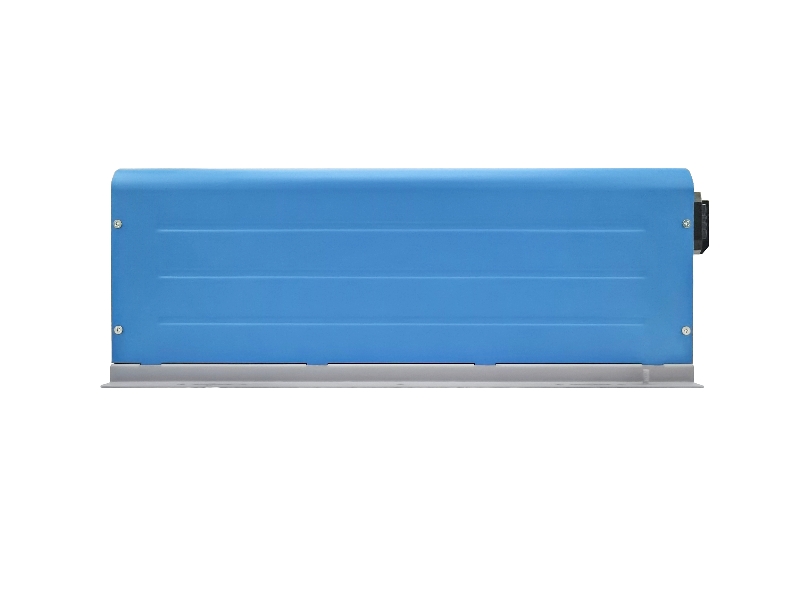

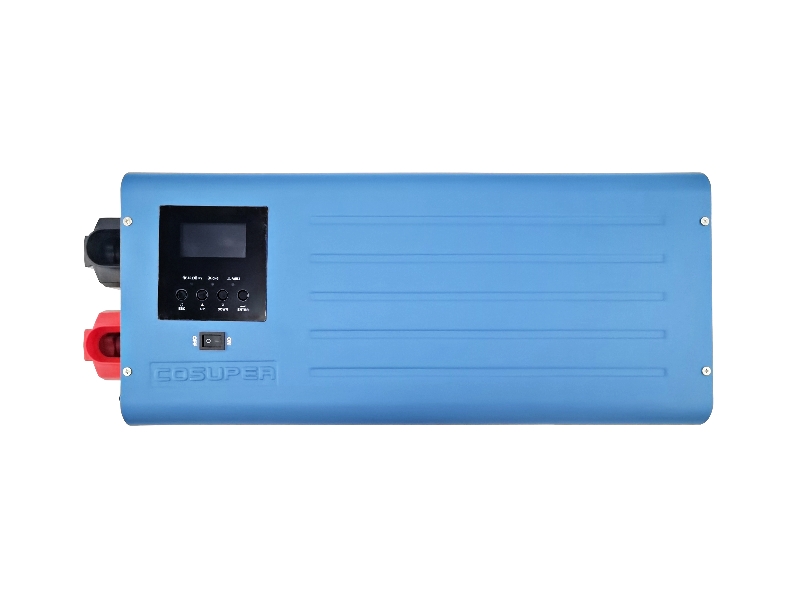

2000W~6000W Pure Sine Wave Inverter Charger

2000W~6000W Pure Sine Wave Inverter Charger

As the latest innovation from C&D Emerging Energy, the GMC Inverter Charger is purpose-built to meet the growing demands of modern mobile power systems. Engineered for use in recreational vehicles, specialty vehicles, and marine applications, it delivers exceptional performance with high efficiency, strong surge capability, and intelligent multi-stage charging.The GMC inverter charger features seamless automatic switching between AC and DC systems, ensuring uninterrupted power supply. It also integrates a main battery charger and a CAN-BUS communication port, enabling advanced system monitoring and interactive control to meet a wide range of user requirements.Built to perform in harsh conditions, the unit operates reliably at temperatures up to 50°C, maintaining full power output without derating or interruption. Durable, intelligent, and versatile, the GMC inverter charger is the ideal solution for mobile and off-grid power applications.





MODEL GMC 2000 GMC 3000 GMC 4000 GMC 5000 GMC 6000
Raled Power 2000W 3000W 4000W 5000W 6000W
INPUT
Voltage 100V110V120VAC; 220/230V240VAC
Selectable Voltage Range Wide Range: 75VAC-138VAC; 155VAC-275VAC (for home appliances)
Narrow Range: 82VAC-138VAC: 165VAC-275VAC (for personal computer)
Frequency 40-70Hz 100/110V/120VAC(±5W); 220V/230V240VAC(±10V)
OUTPUT
AC Voltage Regulation
(Batt Mode)
100/110/120VAC(±5W); 220/230/240VAC(±10V)
Surge PoAer 4000VA 9000VA 12000VA 15000VA 18000VA
Efficiency (Peak) 88% 91%
Transher Time <20ms < 10ms
Wave form Pure sine wave
BATTERY
Battery Voltage 12V/24V 12V/24V/48V 24V/48V 24V/48V 24V/48V
Charge curent 75A/35A 75A/50A/25A 75A/35A 75A/45A 75A/50A
Fast Charge Voltage 14.3VDC for 12V(*2 for 24V. *4 for 48V)
Float Charge Voltage 13.7VDC for 12V(*2 for 24V. *4 for 48V)
Battery Low Voltage Alarm 16.5VDC for 12V(*2 for 24V. *4 for 48V)
Over Voltage Protection 10.5VDC for 12V(*2 for 24V. *4 for 48V)
Battery low Voltage Shutdown 10.0VDC for 12V(*2 for 24V. *4 for 48V)
Protection Over charging, Over temp, Over battery voltage, Over load, short-circult
Operating EnvironmentTemperature 50℃
Cooling Intelligent Fan
Display LCD
Specification Setting By LCD:
Charging current, battery type, input voltage, output frequency, wide and narrow
of AC input voltage, power-saver model, AC priority or battery priority
PHYSICAL
Dimension. (D"V"H)mm 532*257*185.5 617.5*345*199.5
Net weight (kg) 15 25.2/24.6 34.4/33.8 37.9/38.2 41.6/40.5
ENVIRONMENT
Humidity 5-95 Relative humidity (No-condensing)
Operating Temperature  -10°C-50°C
Storage Temperature  -10°C-60°C



AS/NZS 4763:2011, UL458, LVD(EN60950)





  • CAN-BUS communication
  • MAX. 90A charge current for AGM/GEL/Flooded/Lithium batteries
  • High working temperature tolerance for -10~50℃ at 100% continuous output
  • Battery temperature compensation for energizing battery in cold environmentControl battery in safe charge regulation in high temperature
  • Ultra-low idle consumption to save energy
  • Auto charge with qualified AC input without turning on
  • Auto GEN start/stop
